  LCD 7" Monitor and Licence Mount Camera
 Back

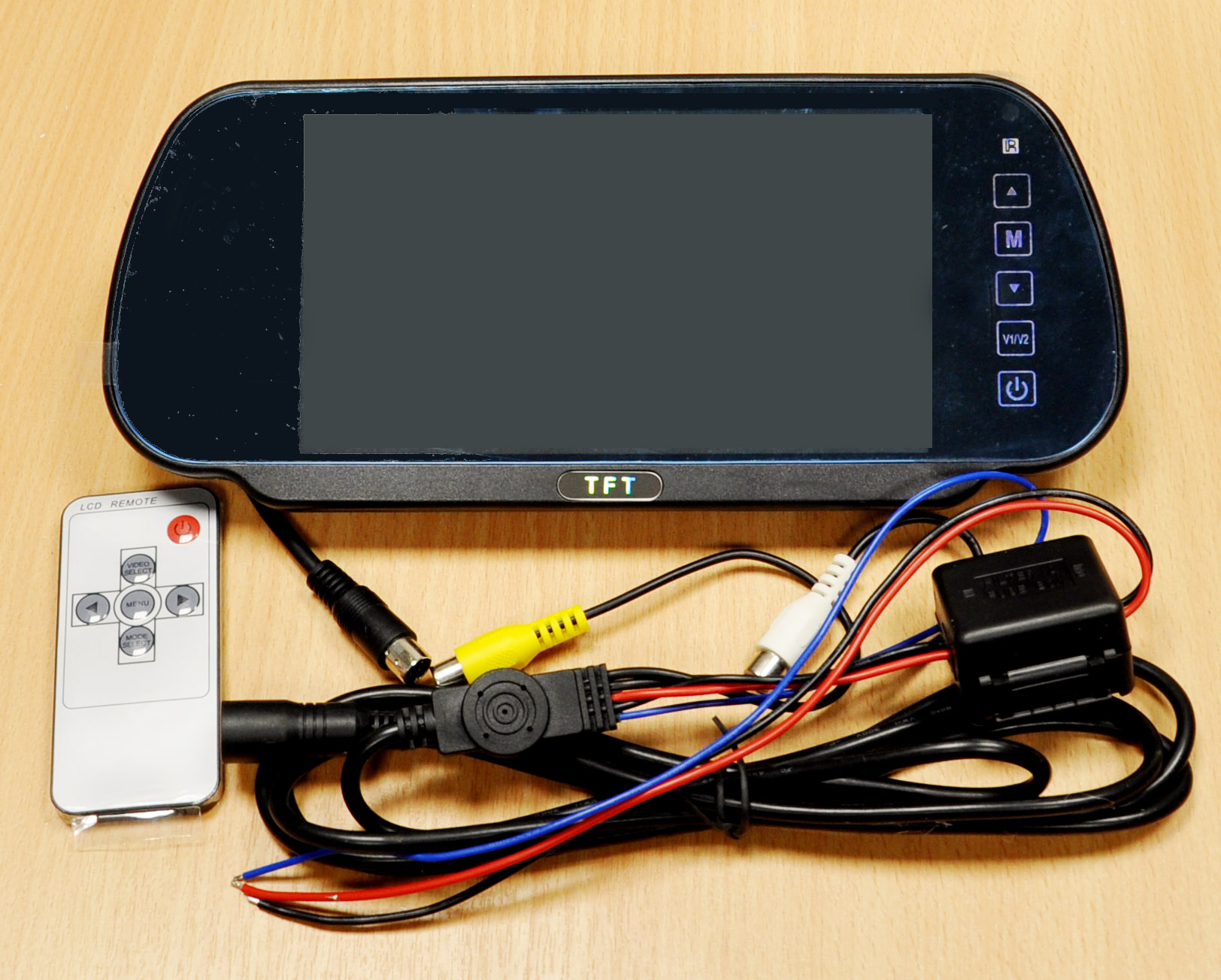

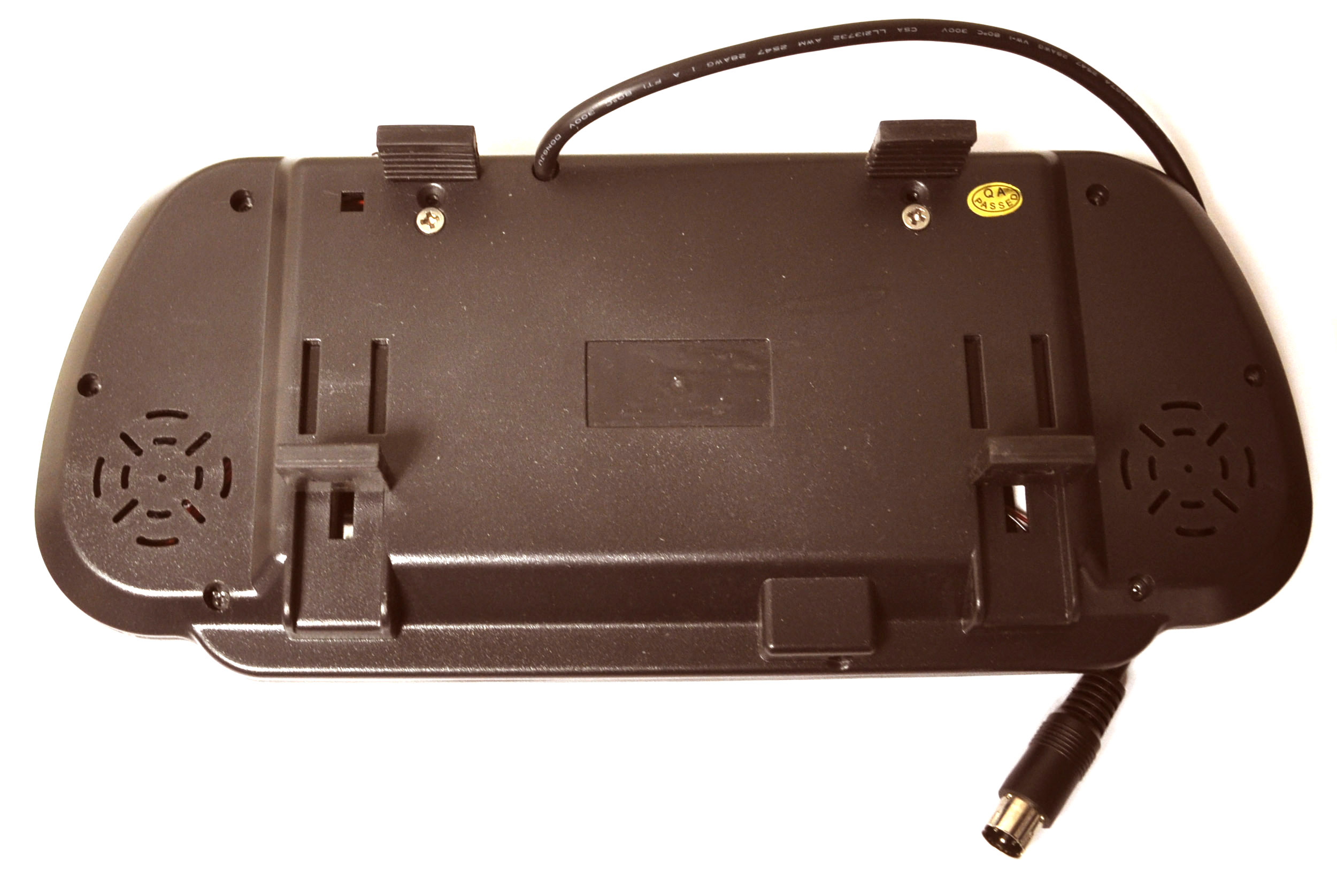

LCD 7" Monitor and Licence Mount Camera
[7''+20186]

This is perhaps one of the most eye catching parking systems on the market, the large 7" TFT screen draws attention to itself; providing more than just looks, the screen is of amazing quality - boasting 2 video inputs and an amazingly high resolution display of 800 x 480 to provide a crystal clear image. This is only matched by the camera which is provides a high resolution feed (PAL: 628 x 582)

The display can cycle through the two video streams by a press of a button on the front of the display to switch to the rear camera feed, this setup can be wired up to automatically switch to the rear camera feed when the reverse gear is engaged. The amazingly high resolution screen makes this an ideal centre piece, it can be connected to a game console or a dvd player; making them long journeys enjoyable for your passengers.






An exquisite frame surrounds the buttons, they are touch responsive and sit flush on the screen, the lighting provides the user with a sense of feedback.



The camera is a waterproof license mounted colour camera with an exceptional viewing angle of 150º, the camera is based on the OV7910 CMOS sensor to provide exceptional image clarity whatever the lighting conditions and features automatic night vision as well as mirror/normal image modes.






Kit includes:

  1. Camera with 1.5M power cable, and 5M video output socket and mirror/normal image switch
  2. 25 mm drill saw
  3. User manual
  4. 7 Inch LCD Display
  5. Intelligent video switcher



Technical Specifications (Display):

  1. Screen type: TFT LCD
  2. Screen size: 7 inch colour display
  3. Resolution: 880 (H) x 480 (V) [RGB]
  4. Aspect ratio: 16:9
  5. Power input: DC12V
  6. Power consumption (Max): 3W
  7. Brightness: 300
  8. Contrast: 350
  9. Video input(s): 2
  10. Control method: Button/Remote



Technical Specifications (Camera):

  1. Image sensor: OV7910, 1/3" Colour
  2. Effective pixels: PAL: 628 x 582, NTSC: 510 x 492
  3. Water-proof category: IP67-IP68
  4. Signal system: PAL
  5. Resolution: 380 TV Lines
  6. Shutter speed: 1/50-60 ~ 1/15000 second
  7. S/N Ratio: 48db
  8. Minimum illumination: < 1.0 Lux
  9. Video output: 1.0Vp-p, 75 OHM
  10. Power supply: DC12V +/-20%
  11. Current consumption (Max): 70mA
  12. Lens angle: 150º
  13. Number of IR LED's: 5
  14. Operating temperature: -20ºC ~ 65ºC


Price:  £91.91

UK Delivery Charge: £4.99
